Gate Valves

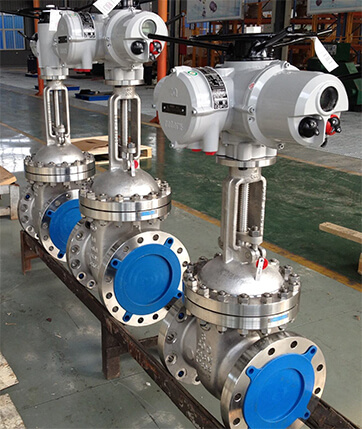

Gate Valves are used extensively throughout the hydrocarbon, energy and process industries.
2” - 88“
Up to 2500#
API 600 / 602
Available Types
- Wedge type Bolted Bonnet
- Wedge type Pressure Seal Bonnet
- Parallel Slide Bolted Bonnet
- Parallel Slide Pressure Seal Bonnet
- Conduit Bolted Bonnet Slab Gate
- Conduit Bolted Bonnet Expanding Gate
Cryogenic Service
Gate Valves can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests are performed to verify the behaviour of production valves in terms of valve torque, sealing capability, emissions vs the ambient.
Operator / Actuator Options
Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
Technical Specifications
| Size Range | 2” up to 88“ (DN 50 up to DN 2200) |
|---|---|
| Pressure Rating | ASME 150# to 2500# |
| Design Standard | API 602, API 600, MESC SPE 77 / 101, MESC SPE 77 / 102, ASME B16.34 |
| Pressure / Temp Rating | ASME B 16.34 |
| Test Standard | API 598, API 6D, MESC SPE 77/101, 77/ 102, ISO 5208, API6FA, ISO 10497, ISO 15848 – 1&2, Bs6364 |
Material Selection & Construction
Our valves are available in a wide range of materials to suit various corrosive and non-corrosive environments.
Standard Materials
- Carbon Steels
- Low Temperature Carbon Steel
- Martensitic Steels
- Austenitic Stainless Steel
Exotic Alloys
- Duplex & Super Duplex Stainless
- Nickel Alloys & Inconel
- Titanium Alloy
- Hastelloy & Nickel Aluminum Bronze
- Carbon Steel with CRA Overlay
Construction Details
Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem
End Connections: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
