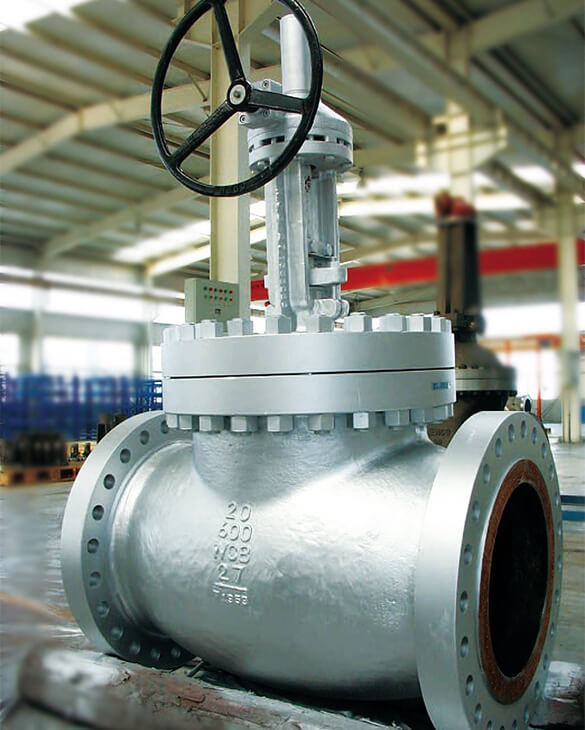

Globe Valves
Globe Valves are extensively used through-out the hydrocarbon, energy and process & the power industries.
½” - 24“
Up to 2500#
API 602 / BS 1873
Available Types
- Bolted Bonnet
- Pressure seal
- Bellows Seal
Cryogenic Service
Globe Valves can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests are performed to verify the behaviour of production valves in terms of valve torque, sealing capability, emissions vs the ambient.
Operator / Actuator Options
Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)
Technical Specifications
| Size Range | ½” up to 24“ (DN 15 up to DN 600) |
|---|---|
| Pressure Rating | ASME 150# to 2500# |
| Design Standard | API 602, MESC SPE 77 / 103, BS 1873 DIN 3356 |
| Pressure / Temp Rating | ASME B 16.34 |
| Test Standard | API 598, API 6D, MESC 77/103, ISO 5208, ISO15848 -1&2, BS 6364 |
Material Selection & Construction
Our valves are available in a wide range of materials to suit various corrosive and non-corrosive environments.
Standard Materials
- Carbon Steels
- Low Temperature Carbon Steel
- Martensitic Steels
- Austenitic Stainless Steel
Exotic Alloys
- Duplex & Super Duplex Stainless
- Nickel Alloys & Inconel
- Titanium Alloy
- Hastelloy & Nickel Aluminum Bronze
- Carbon Steel with CRA Overlay
Construction Details
Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem
End Connections: Screwed, Socket Weld, Flanged, Hub End, Butt-Weld
